QC Conveyor’s Canadian Master Distributor
QC Conveyors is one of the leading manufacturers of Conveyors.
For more than 35 years, they’ve been focused on one thing: providing their customers with reliable, easy to use conveyor systems that meet their needs, then backing them with world class service and support. Whether you’re an end user looking to decrease your line’s downtime or an OEM putting our conveyor in a machine with your company’s name on it, QC Conveyors offers the quality, reliable product you’re looking for.

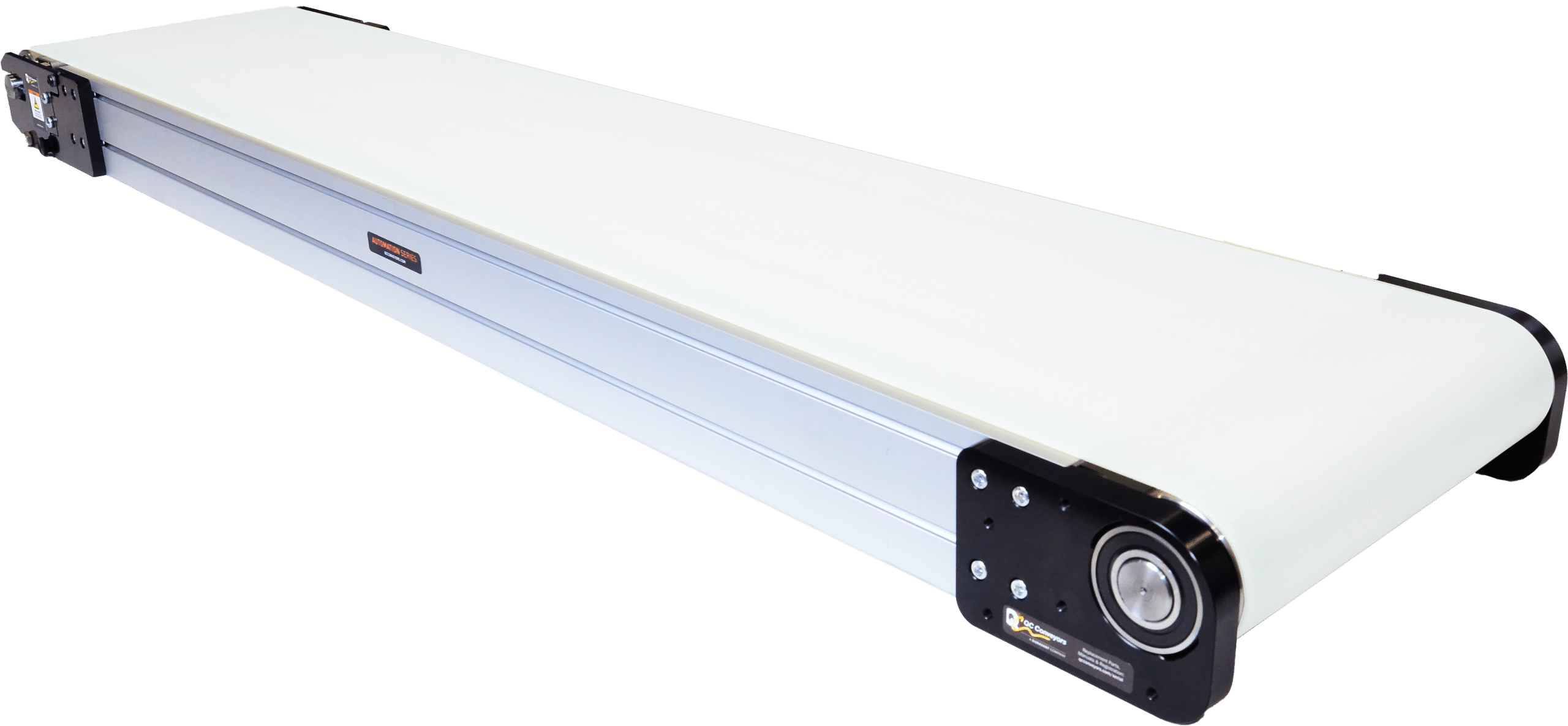

Automation Series – AS80

AS80 Features
- Sturdy Multi-Piece Frame Aluminum with Steel Supports
- Large, sealed, double-row Deep-Grooved ball bearings support high speeds up to 535 FPM
- Built-in t-slots allow rapid accessory mounting
- Supports optional v-guide belts for reversing and side-loading applications
- Compact drives capable of high speeds available as AC or Brushless DC motors
- Tension Release Tail is designed for fast belt changes and easy access to the frame to clean or clear debris
AS80 Specifications
- Widths: 6″ to 36″
- Lengths: up to 40′
- Loads: up to 600 lbs
- Speeds: up to 535 FPM
- Profile: 3.81″ High
- Assembled with all metric fasteners



Automation Series – AS40
AS40 Features
- Rigid, single-piece aluminum frame*
- Large, sealed, double-row ball bearings support high speeds up to 400 FPM
- Built-in t-slots allow rapid accessory mounting
- Supports optional v-guide belts for reversing and side-loading applications
- Compact drives capable of high speeds available as AC or Brushless DC motors
- Unique Pivot™ Drive package rotates to any position for maximum flexibility
- Push-button Tension Release Tail is designed for fast belt changes and easy access to the frame to clean or clear debris
*Conveyors 12″ and wider feature multi-piece steel/aluminum construction.
AS40 Specifications
- Widths: 2″ to 24″
- Lengths: up to 20′
- Loads: up to 120 lbs
- Speeds: up to 400 FPM
- Profile: 1.95″ High
- Assembled with all metric fasteners

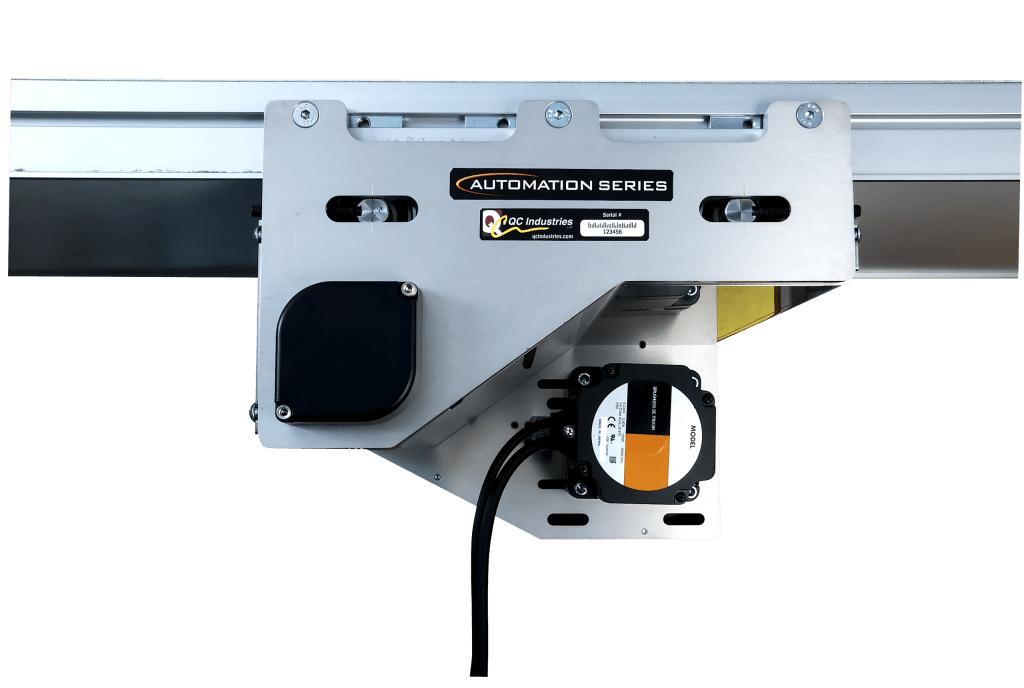

Automation Series – AS40-CD
AS40-CD Features
- Center Drive can be positioned at any point along the length of the conveyor — simply loosen a few screws, slide to the new location and re-tighten the fasteners
- Large, sealed, double-row ball bearings support high speeds up to 400 FPM
- Rigid, single-piece aluminum frame*
- Built-in t-slots allow rapid accessory mounting
- Supports optional v-guide belts for reversing and side-loading applications
- Compact drives capable of high speeds available as AC or Brushless DC motors
- Unique Pivot™ Drive package rotates to any position for maximum flexibility
- Push-button Tension Release Tail is designed for fast belt changes and easy access to the frame to clean or clear debris
*Conveyors 12″ and wider feature multi-piece steel/aluminum construction.
AS40-CD Specifications
- Widths: 2″ to 24″
- Lengths: up to 26′
- Loads: up to 120 lbs
- Speeds: up to 400 FPM
- Profile: 1.95″ High
- Assembled with all metric fasteners

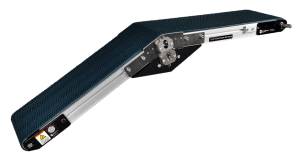

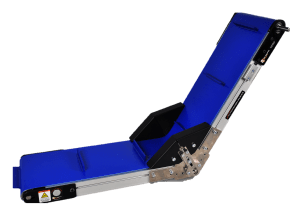

Automation Series – AS40-Z
AS40-Z Features
- Rigid, single-piece aluminum frame*
- Z-track design gives greater control over belt tracking, and longer belt life.
- Large, sealed, double-row ball bearings support high speeds up to 400 FPM
- Built-in t-slots allow rapid accessory mounting
Supports optional v-guide belts for reversing and side-loading applications - Compact drives capable of high speeds available as AC or Brushless DC motors
- Unique Pivot™ Drive package rotates to any position for maximum flexibility
- Push-button Tension Release Tail is designed for fast belt changes and easy access to the frame to clean or clear debris
*Conveyors 12″ and wider feature multi-piece steel/aluminum construction.
AS40-Z Specifications
- Widths: 8″ to 24″
- Lengths: up to 20′
- Loads: up to 120 lbs
- Speeds: up to 200 FPM
- Profile: 1.95″ High
- Angles: 30º, 45º, 60º
- Assembled with all metric fasteners



HydroClean Series – Washdown Rated
HC200 Features
- Stainless steel, sanitary design that is easy to clean
- Sides, guides, belt, drive end, and tail end can be removed for cleaning without tools
- Slider bed is self-draining and fasteners are designed to minimize opportunities for bacteria growth
- Extremely quiet operation is ideal for applications where workers are nearby
- NSF Certified and BISSC Certified HC200 conveyors are available with FDA and USDA suitable antimicrobial belting
- Stainless steel bearings with NSF approved MicroPoly™ solid lubricant are sealed for life and covered for extra protection
- Drive and tail pulleys are v-guided and crowned to ensure proper tracking
- Plastic chain belting available
HC200 Specifications
- Widths: 4″ to 24″
- Lengths: 24″ to 18′
- Loads: up to 120 lbs
- All stainless steel construction
- Metric hex head and slotted bolts used throughout the assembly


HydroClean Series, HC200 Conveyors are built for easy cleaning. They feature a stainless steel design that can be fully disassembled without tools for in place cleaning. The belt, tail, drive and stands can be removed for cleaning simply by using a series of pull pins.
Industrial Series – IS125
IS125 Features
- Tough, single piece steel frame supports heavy loads up to 450 lbs
- Ver low profile (1.89″) – fits where conventional conveyors can’t
- Lube-for-Life Bearings™ eliminate routine bearing maintenance
- Snap-in sealed tail assembly – makes belt replacement quick and easy
IS125 Specifications
- Widths: 4″ to 24″
- Lengths (standard): 18″ to 12′
- Lenths (extended): 13′ to 23′
- Profile: 1.89″
- Loads: up to 450 lbs
- Speed: up to 225 FPM

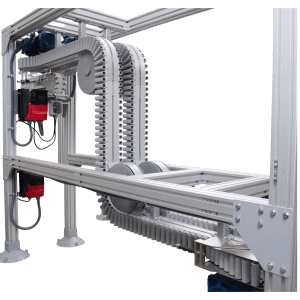

Flextrac Series
Features
- Modular construction allows infinite configurations for nearly any factory automation application
- Take advantage of unused vertical real estate with gripper elevator or alpine conveyor options
- Available with aluminum or stainless steel construction
- Variety of chain options to support differing applications, including high speeds, inclines, static-sensitive products, and non-marking
- Free-rolling or driven transfers available to ease product transfer between conveyors
- Easy to re-configure as new equipment or layouts require
Specifications
- Widths: 2.5″ to 23″
- Lengths: up to 98.5′
- Loads: up to 880 lbs
- Speeds: up to 164 FPM
- Assembled with all Metric Fasteners


QC Conveyors Advantages
24/7 Online Configuration and Quoting
Configure and quote conveyors 24 hours a day using our online Conveyor Configurator. An intelligent assistant uses engineer-developed rules to make sure all your components — including gearmotors, stands, and sides/guides — work together properly.

Quick Shipping
The most popular conveyors ship in just FIVE days!
When you order a conveyor from us, we’ll build it to the size you need and ship it in as few as five days. This includes all our most popular conveyor models, including AS40, AS40-CD and IS125 Conveyors with our most commonly-requested belt options, like accumulating and high-friction belts. Select sizes of Flextrac Series components are available in just ten days.

10 Year Warranty
Our products are developed and tested with long-term reliability in mind. To ensure our conveyors will run problem-free in the field for many years, we demand the tightest tolerances in the industry and manufacture our components using the most advanced processes available. Each conveyor is inspected at several points of the manufacturing process to ensure quality, including a final operational test before it leaves our facility. That’s why we confidently stand behind our products with a 10 year warranty when they’re registered online.
