SNS Industrial Group provides high quality products for pneumatic and hydraulic cylinders.
SNS offers a wide variety of cylinder products including NFPA hydraulic and pneumatic Tie-Rod cylinders, Welded Type cylinders, Mill Type cylinders, custom Valve Actuator cylinders, as well as custom Tie- Rod cylinders.
The SNS cylinder brand has been implemented within industry for many years with a proven track record of quality and excellence. SNS also has engineers on staff to help with specific client applications. No job is too big or too small to handle for the experienced team at SNS.
Custom engineered cylinders are also available as a value-added service for specific client application needs

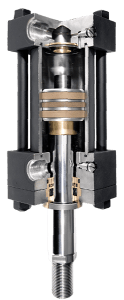

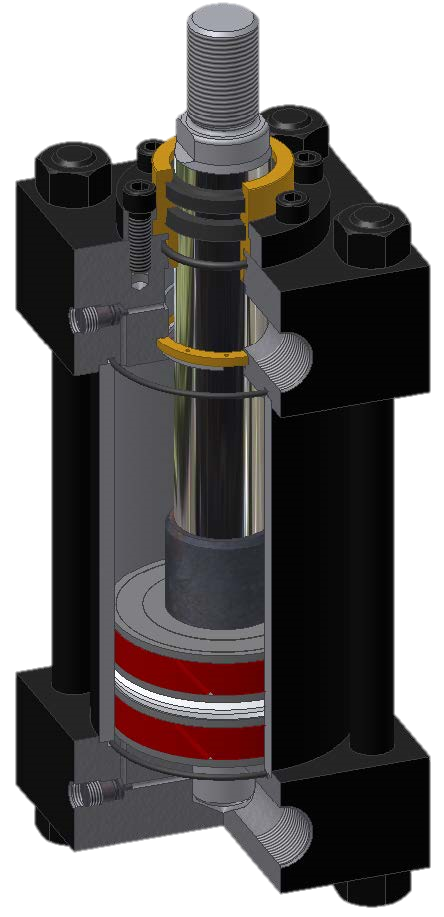

NFPA Hydraulic and Pneumatic Tie-Rod Cylinders:
SH Series: High Pressure Hydraulic 3,000 psi / 1.5” to 26” Bore
SL Series: Medium Pressure Hydraulic 1,500 psi / 1.5” to 24” Bore
SA Series: High Pressure Pneumatic 250 psi / 1.5” to 24” Bore
SCE Series: Aluminum Medium Pressure Pneumatic 150 psi / 1.5”-14” Bore
SSA Series: Stainless Steel Pneumatic / 1.5” to 14” Bore
SSH Series: Stainless Steel Hydraulic / 1.5” to 20” Bore
Special Specifications: Oversized Rods, Double Rods, Transducers, Stop Tube, Low & High Temp Seals, Stroke Adjusters, Prox Switches etc.
Mill Cylinders:
SMTH Series: Mill Type Hydraulic Cylinder 2,000 psi / 2” to 14” Bore
SMTA Series: Mill Type Pneumatic Cylinder 200 psi / 2” to 14” Bore
SMH Series: Mill Duty High Pressure Hydraulic Up To 5,000 psi / 2”-26” Bore
SMA Series: Mill Duty High Pressure Pneumatic 250 psi / 2” to 26” Bore
Special Specifications: Oversized Rods, Double Rods, Transducers, Stop Tube, Low & High Temp Seals, Stroke Adjusters, Prox Switches, etc.

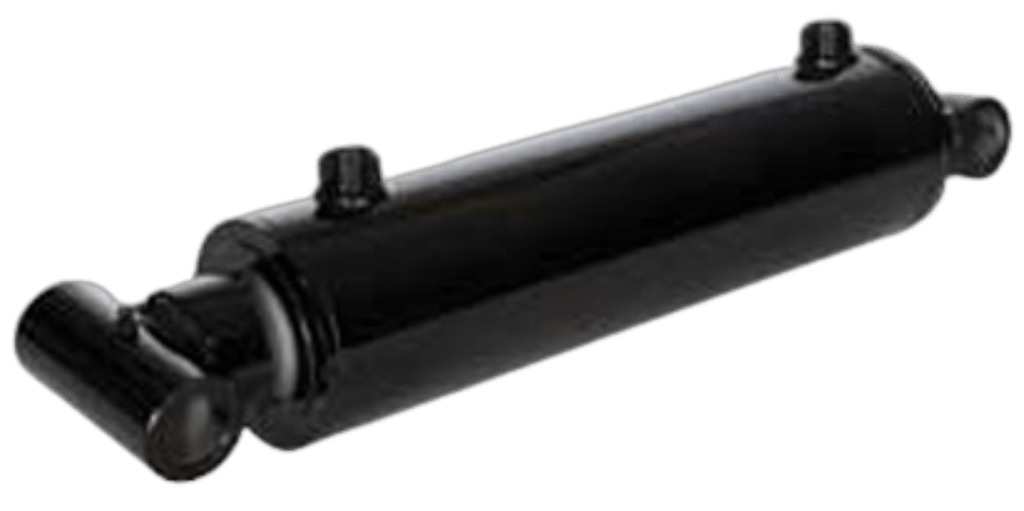

Welded Standard & Agricultural Tie-Rod Cylinders:
500 Series: Welded Hydraulic Clevis Both Ends 3,000 psi / 2” to 5” Bore
600 Series: Welded Hydraulic Clevis Both Ends 3,000 psi / 2” to 5” Bore
700 Series: Welded Cross Tube Hydraulic 3,000 psi / 1.5” to 5” Bore
800 Series: Welded Hydraulic Customizable 3,000 psi / 2” to 8” Bore
900 Series: Welded Hydraulic Customizable 4,000 psi / 3” to 8” Bore
2T Series: Agricultural Tie-Rod Cylinders 2,500 psi / 2” to 5” Bore
3T Series: Agricultural Tie-Rod Cylinders 3,000 psi / 2” to 5” Bore
SP Series: Snow Plow Cylinders – Customizable to inquiry / 1.5” to 2” Bore
Valve Actuator Cylinders:
SVA Series: Pneumatic Valve Actuator Cylinders 250 psi / 2” to 52” Bore
Special Specifications: Stainless Construction, Spring Extend and Return, Transducers, Stop Tube, Low & High Temp Seals, Stroke Adjusters, Prox Switches, etc.
Custom Cylinders:
SCC Series: Custom Cylinders – Engineered, Purpose-Built, and Reversed Engineered Solutions
Styles: Tie-Rod, Welded, Torpedo, Mill Duty, Telescopic, Tandem, Crimped
Bore Sizes: 1.5” to 60” Bore
Stroke Ranges: Up to 900” Stroke Lengths
Materials: Carbon Steel, Alloys, Forgings, Castings, Carbon Composites, Stainless, Aluminum
Features: Transducers, Stop Tube, Spring Extend and Return, Stroke Adjusters, Prox Switches, High Temp and Low Temp Seals, Manifolds, Hard Piping…
