Mech-Mind Robotics is an industry-leading supplier of industrial 3D cameras and software suites for robotic applications. Leveraging 3D vision and AI technologies, we enable industrial robots to manage demanding automation tasks, including bin picking, depalletizing & palletizing, and assembly.

Our comprehensive product portfolio includes Mech-Eye industrial 3D cameras, Mech-Vision machine vision software, Mech-DLK deep learning software, and Mech-Viz robot programming software.

Excellent usability, approved quality, comprehensive service, and competitive price, that’s what we stand for and how we help our customers to exceed in their business.

Mech-Mind has deployed 3000+ solutions in 50+ regions, creating visible ROI for 1000 + customers worldwide.

Robotic solutions using 3D Vision and Artificial Intelligence

Mech-Mind offers a range of solutions to improve the efficiency and application of robotics in real-world situations. They have proven solutions for:

Palletising and Depalletising
Machine tending
Piece Picking
Bin Picking
Assembly, Locating and Gluing

High-performance industrial 3D cameras and intelligent platform software

Mech-Mind have developed a range of 3D Camera systems and software that integrate with robotics to revolutionise the way robots can be used and deployed. Their range includes:

Mech-Eye Industrial 3D Cameras
Mech-Vision Graphical Machine Vision Software
Mech-Viz Intelligent Robot Programming Environment
Mech-DLK Deep Learning Software

Mech-Eye FLAGSHIP MODELS

DEEP

Large FOV
Deep Depth of Field

LSR L

Large FOV
High Accuracy
Ambient Light Resistance (>30,000 lx)

PRO S

High Accuracy
Extended FOV
Ambient light resistance

PRO M

High Accuracy
Extended FOV
Ambient light resistance

NANO

Small size
High Accuracy

Key Applications

Depalletizing
Palletizing

Key Applications

For large-range working distance
Bin picking, machine tending, etc
Factory-Floor applications with strong ambient light interference

Key Applications

For medium-range working distances
Bin picking, assembly, picking & placing, etc.

Key Applications

For Medium-Range working distances
Bin picking, assembly, picking & Placing, etc.

Key Applications

End of Arm applications

Mech-Eye LSR L

Long-Range Working Distance

High Accuracy | Large FOV | Ambient Light Resistance

The next-gen Mech-Eye LSR L can generate accurate, complete, and detailed 3D point cloud data of a wide variety of objects under severe ambient light interference (> 30,000 lx)

Mech-Eye PRO M / PRO S

Medium-Range Working Distance

High Accuracy | Fast Scanning Speed | Blue and White Light Option

Mech-Eye PRO delivers an extraordinary level of detail with super high accuracy. Capturing point clouds with accurate details takes as low as 0.3 s.

Mech-Eye NANO

Short-Range Working Distance

Ultra-Small Size | High Accuracy | Ambient Light Resistance

Mech-Eye NANO (accuracy: 0.1 mm @ 0.5 m) can create 3D data of most complex parts with extraordinarily high accuracy. In space-critical applications, Mech-Eye NANO is easy to install and shows outstanding flexibility thanks to its ultra-small
size (145 × 85 × 51mm)

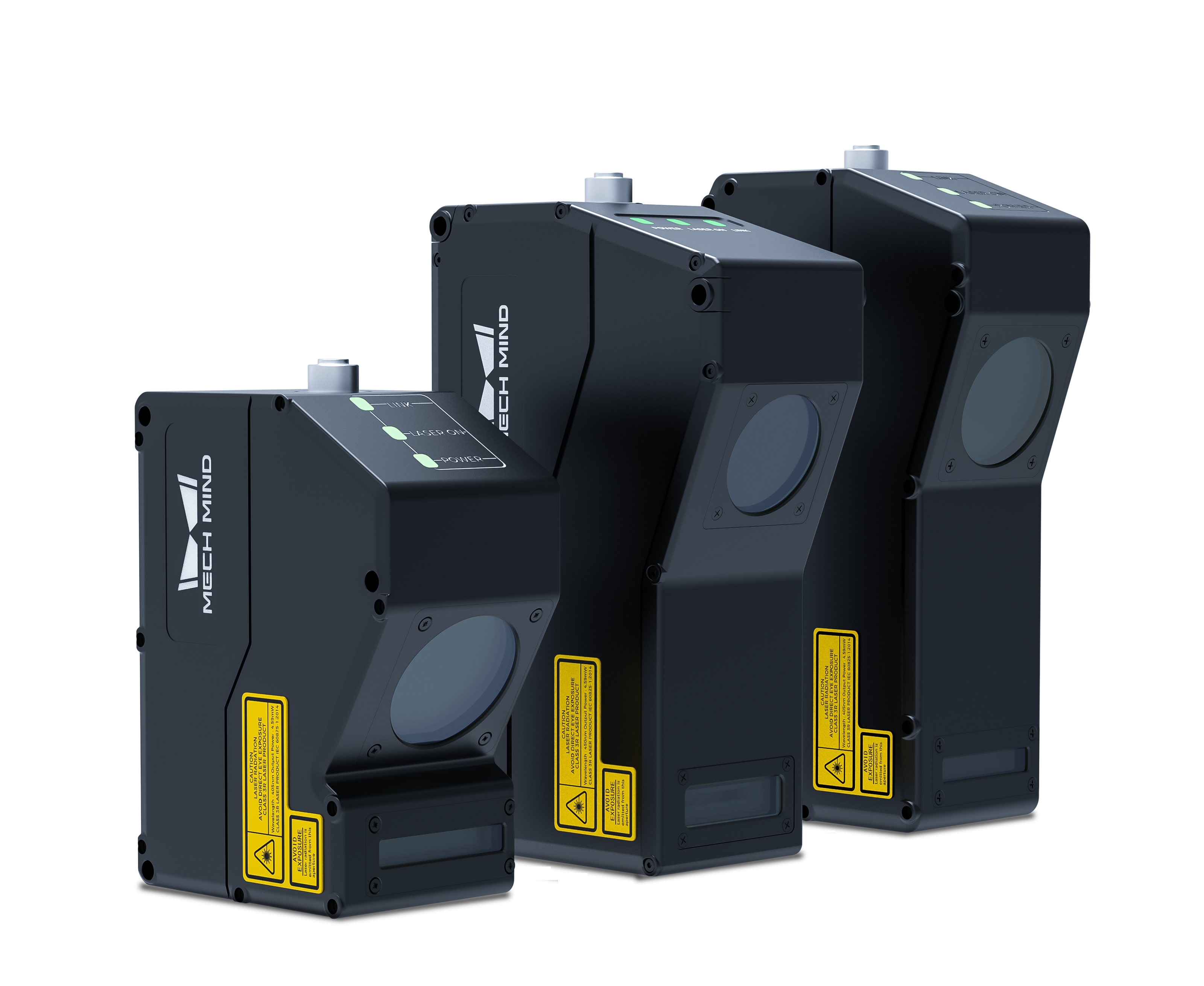

Mech-Eye LNX-8000 Series

3D Laser Profiler

4K resolution for high-resolution inspection and measurement
Scan rate up to 15 kHz to deliver accurate 3D data at a faster speed
Single-shot HDR to scan dark and reflective surfaces in one exposure

Mech-Vision – Machine Vision Software

Mech-Vision is an industry-leading machine vision
software. It is designed to quickly build vision
applications, whether simple or complex. With MechVision, users can manage a wide range of vision tasks,
including identification, localization, inspection &
measurement, etc.

Build your vision applications efficiently
Manage complex vision applications with extensive tools
Develop vision applications easily and flexibly

Mech-Viz – Robot Programming Software

Mech-Viz is a software product for efficiently
implementing robotic applications without writing
a line of code. Mech-Viz enables robots to manage
demanding automation tasks with excellent stability,
extraordinary flexibility, and outstanding consistency.

Intuitive Robot Programming
Powerful Algorithms for Reliable Robotic Operations
Flexible and Easy Implementation

Mech-DLK – Deep Learning Software

Mech-DLK is a versatile deep learning software solving
complex machine vision tasks. It enables users to
rapidly train models and easily solve demanding vision
applications, including overlapping object recognition
and classification, complex defect detection, character
reading, etc.

Train models efficiently without writing a line of code
Manage complex machine vision tasks with speed and accuracy
Integrate your vision tasks into your production environment easily

Mech-MSR – 3D Measurement and Inspection Software

Mech-MSR is an all-new AI software designed for 3D measurement and inspection applications. Running on Mech-Eye LNX 3D laser profilers, Mech-MSR can quickly create end-to-end inspection solutions and offer an excellent user experience like never before.

Easy-to-use GUI Design
No expertise Required
End to End deployment
Easy sensor setup
Multi-dimensional (2D/3D) measurement capabilities

More Information about Mech-Mind Applications

Thousands of Real World Cases

Mech-Mind robotics delivers complete and reliable solutions to real-world bin picking, order picking, depalletizing, palletizing, machine tending, assembly, gluing, high precision locating, high-precision measurement, defect detection and more.

Founded in 2016, Mech-Mind Robotics is a leading provider of 3D vision cameras, machine vision software and intelligent robotic solutions. On their mission to drive the ubiquity of intelligent robots, Mech-Mind has leveraged extensive technical strength to modernize manufacturing by breathing new life into industrial robots.

Mech-Mind has developed a full R&D and products portfolio including Mech-Eye industrial 3D cameras, Mech-Vision graphical machine vision software, Mech-DLK deep learning software, Mech-Viz intelligent robot programming environment, etc.

SNS Industrial Group is the Ontario, Canada partner for the Mech-Mind product range and solutions.

High-performance industrial 3D cameras and AI platform software

Mech-Mind have developed a range of 3D Camera systems and software that integrate with robotics to revolutionize the way robots can be used and deployed. Their range includes:

Mech-Eye Industrial 3D Cameras
Mech-Vision Graphical Machine Vision Software
Mech-Viz Intelligent Robot Programming Environment
Mech-DLK Deep Learning Software

For full details and specifications of the Mech-Mind 3D Camera systems and intelligent software packages, click below.

Robotic solutions using 3D Vision and Artificial Intelligence

Mech-Mind offers a range of solutions to improve the efficiency and application of robotics in real-world situations. They have proven solutions for:

Palletizing and Depalletizing
Machine tending
Piece Picking
Bin Picking
Assembly, Locating and Gluing

For full details and specifications of the Mech-Mind Robotic Solutions, click below.

Popular FAQs for Mech-Eye Industrial 3D Camera

Q1: What is an industrial 3D camera?

An industrial 3D camera is a camera used in industrial applications which can capture objects and reconstruct them from a three-dimensional image. It’s been increasingly used in diverse industries, especially in manufacturing and logistics.

Q2: How does the industrial 3D camera work?

Usually, industrial 3D cameras work with robots to complete various industrial tasks like picking & placing, assembly, inspection, measurement, etc. Industrial 3D cameras can be mounted on the arm or end effector of robots to capture and collect 3D data of the target objects, which is fundamental for robots to execute further steps like pick & place, load & unload, etc.

Q3: What are the main features of Mech-Eye industrial 3D camera?

Mech-Eye 3D camera features high precision, fast processing speed, and high-cost performance.

Mech-Eye industrial 3D camera has full model options, which cover a wide range of industrial applications with diverse requirements on working distance, accuracy, ambient light resistance, etc.

Q4: What are the most used applications of Mech-Eye Industrial 3D Camera?

Mech-Eye 3D cameras can be used in almost all common robot applications, including bin picking, machine tending, palletizing & depalletizing, automated piece picking, assembly, etc.

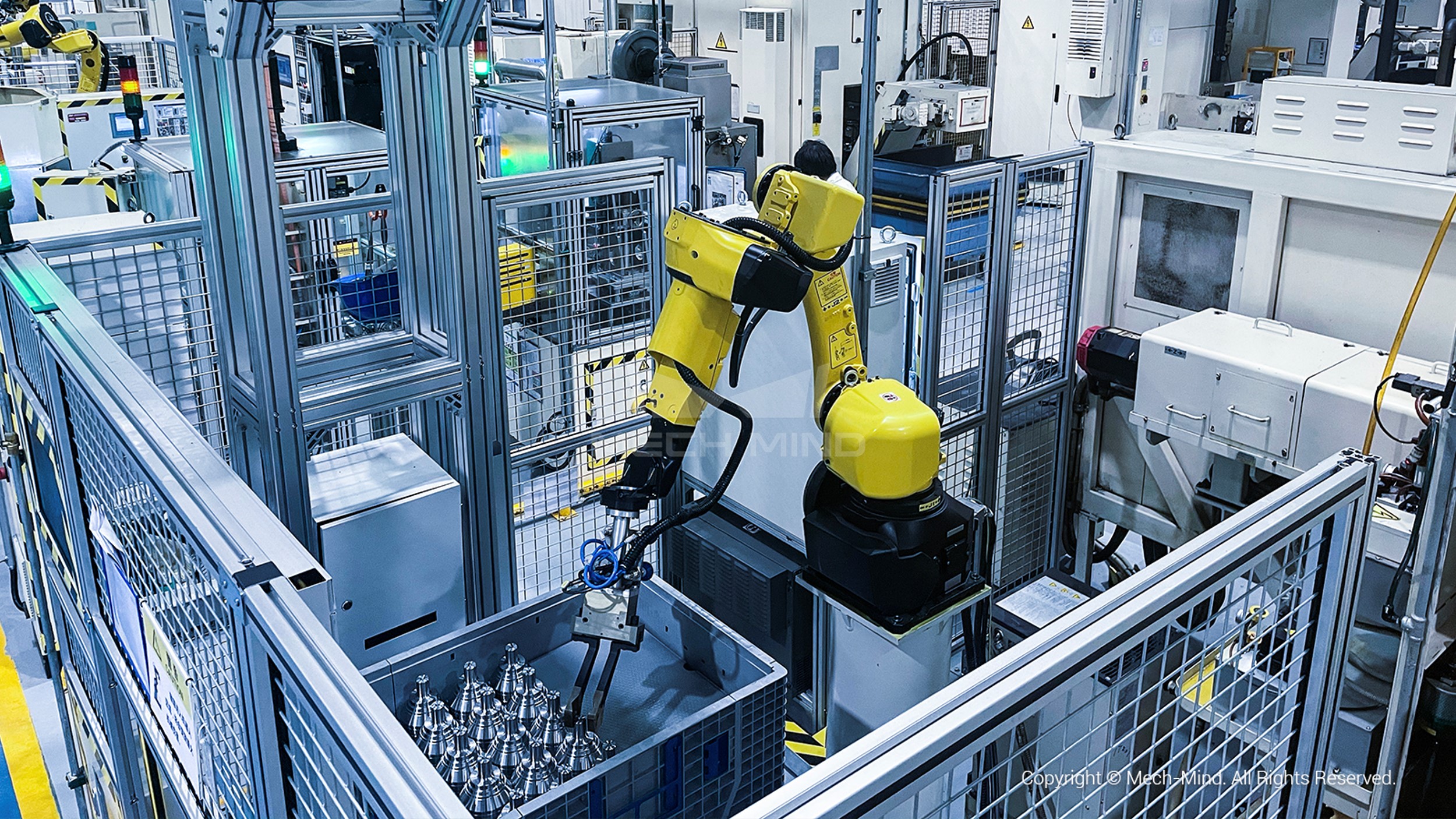

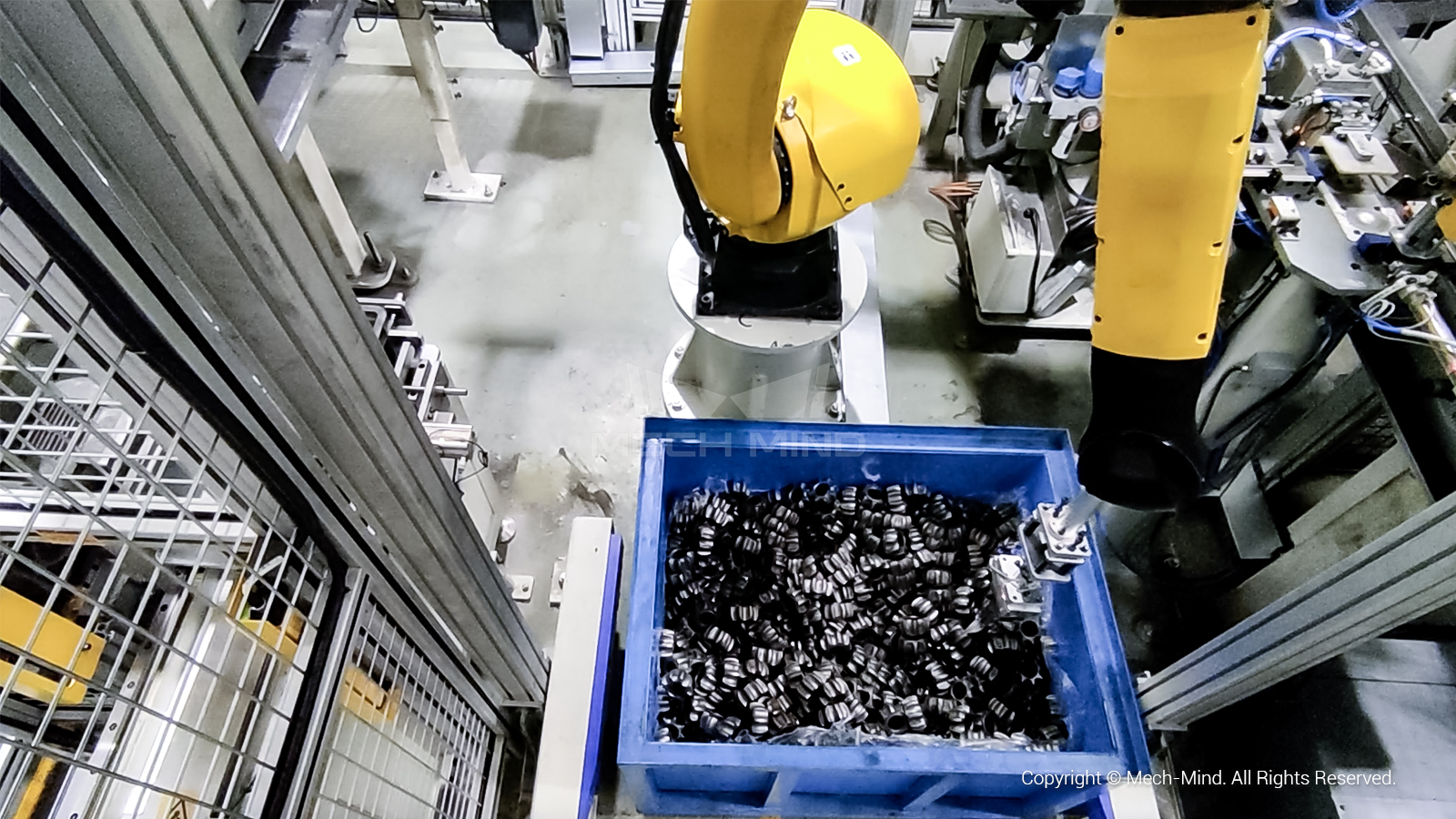

Bin Picking

Guided along by the powerful 3D vision system, the robots can recognize randomly-piled materials, even those with dark or reflective surfaces and complex structures, and then pick them up from deep bins accurately without damaging the components.

Core Advantages


Robust 3D Vision System	Powerful AI Algorithms
Mech-Eye industrial 3D camera generates high-resolution and accurate 3D point clouds of various challenging objects, including reflective, machined metal parts, complex-structured and irregular objects, etc.	Advanced AI algorithms, such as picking strategy, enable robots to accurately pick up various objects. Collision detection and path planning algorithms ensure precise and collision-free robotic picking.

Plug and Play, Easy to Use	Seamless Integration with the WMS System
With a visualized interface, Mech-Viz robot programming software can simulate the robot’s path with only one click. The code-free programming environment provides a low threshold for users to deploy robotic applications quickly.	Seamless integration with the WMS system allows robots to pick objects on demand.

Specifications

Speed	Single cycle time can reach 3s
Objects	Support objects in different sizes and shapes (including randomly stacked tiny objects, complex-structured metal parts with dark or shiny surfaces, etc.)
Robot Brands	Can be adapted to various mainstream robot brands, such as ABB, KUKA, YASKAWA, FANUC, EPSON, and more…
Calibration	Self-calibration
Service	Personalized solution; Staff training; Fixture design.

Intelligent Planning Algorithm

Mech-Vision Vision Algorithm Software

Graphical algorithm software Mech-Vision simplifies all codes into steps, and users can edit algorithms without writing any codes.
It can support users to develop customized algorithms and independently deploy multiple typical applications.

Intelligent Planning Algorithm

Mech-Viz Interface

One-click simulation on the left side of the software. Users can intuitively see the robot’s motion path, recognition result of objects and collision model.
The right side is the robot operation process, which is easy to learn to operate.
Different from traditional code-based programming software, Mech-Viz is a graphical and visualized programming environment.
Built-in intelligent algorithms such as path planning, collision monitoring, and picking planning can help the robot plan the optimal route and avoid problems such as self-collision and environmental collision.
With Mech-Viz, non-experts can manipulate robots after simple training.
Our solutions can be adapted to various mainstream robot brands.

Camera Introduction

Mech-Eye Pro M Enhanced

High scanning speed
High precision
A big field of view.
Support various objects (including objects with black or considerably reflective surfaces)

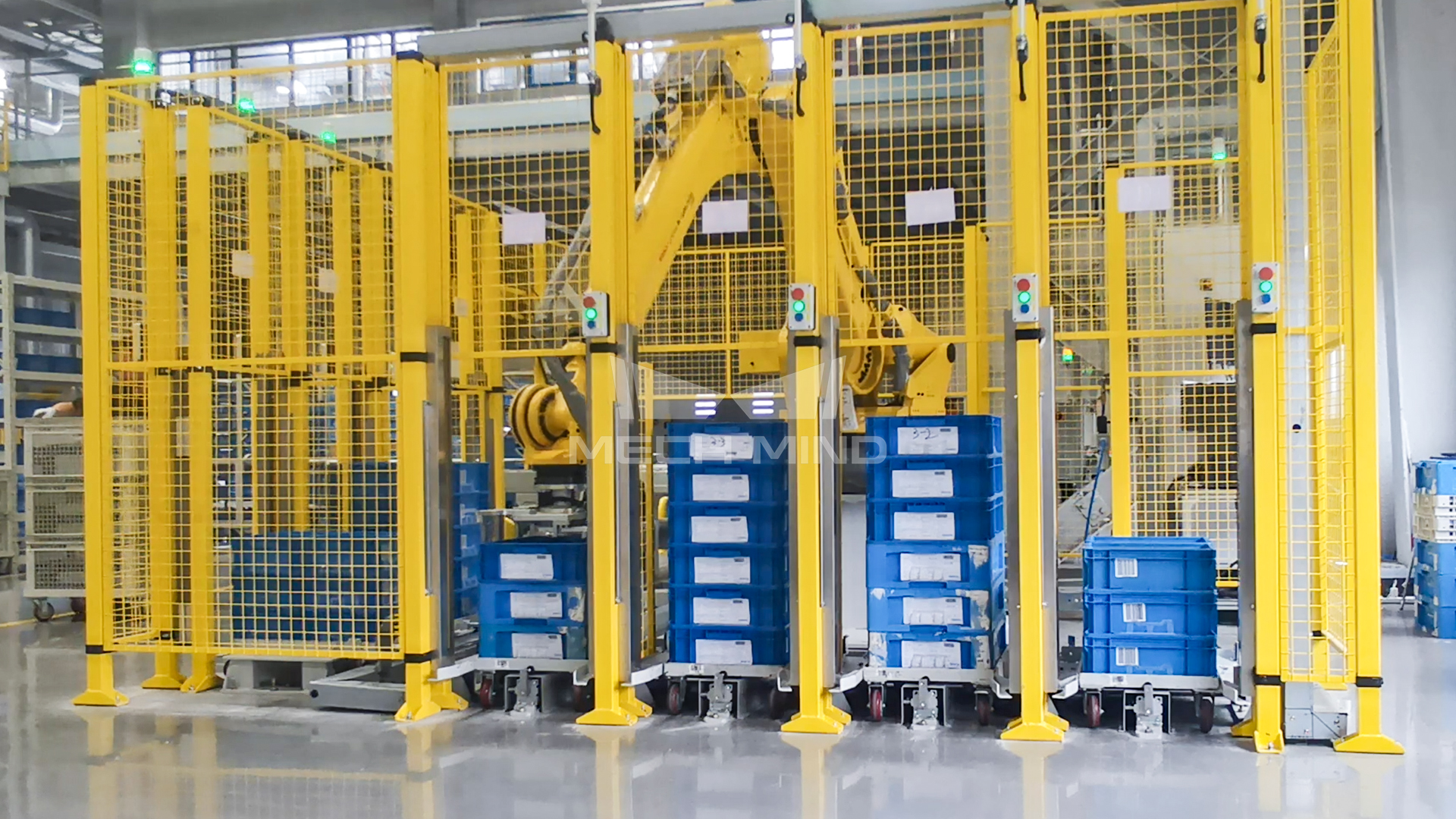

Palletizing and Depalletizing

Intelligent depalletizing and palletizing solutions are widely used in manufacturing, distribution, and fulfillment applications. Backed by 3D vision, deep learning, and other AI algorithms, the robots can automatically execute palletizing and depalletizing while maintaining excellent stability and fast processing speed.

Core Advantages


Robust Recognition	Intelligent Path Planning	Various Pallet Patterns

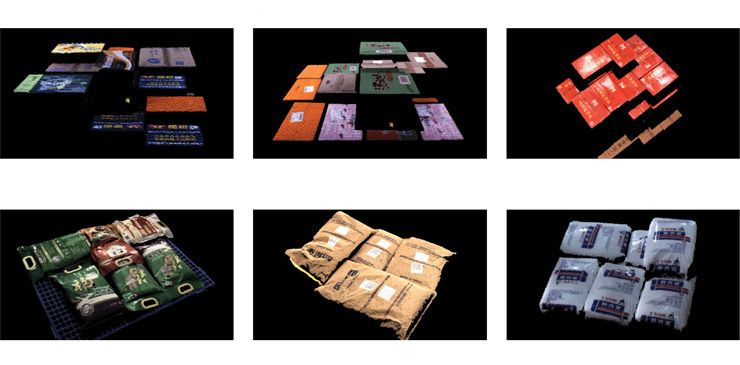

Thanks to powerful AI algorithms, robots can handle cases or sacks with patterns, tapes, express bills, and reflective films. Deformed sacks, and sacks with wrinkles and patterns can also be well handled.	The built-in path planning algorithm guarantees the movement of the robot is precise and collision-free.	With an extra-wide view, it can handle all common pallet patterns (such as the dimension of 1.21.21.8m).

Plug and Play, Easy to Use	Efficient Operation
A visualized interface can simulate the robots’ movement with one click. The code-free programming enables a low threshold for operators to deploy.	Industry-leading pick rate ensures higher output. Advanced multi-pick strategy ensures accurate picking of multiple cases in one grasp.

Specification

Accuracy	1 mm @ 3 m, 3 mm @ 3 m
Distance	1500mm – 3500mm
Speed	Up to 900 cartons/hour.
Objects	Support closely packed cases or sacks; Support angled cases or cartons; Support objects with patterns, tapes, and express bills.
Robots Brands	Can be adapted to various mainstream robot brands, such as ABB, KUKA, YASKAWA, FANUC, EPSON, and more…
Calibration	Self-calibration
Service	Personalized solution Staff training Fixture design

Camera Introduction

Mech-Eye Deep

A deep depth of field
Applicable for various common pallet patterns

Mech-Eye Log S

Built-in ambient light resistance
A large field of view
Fast scanning speed
Easy integration
The 3D vision system allows Mech-Eye to easily recognize various objects that are with dark surfaces and complex structures.
